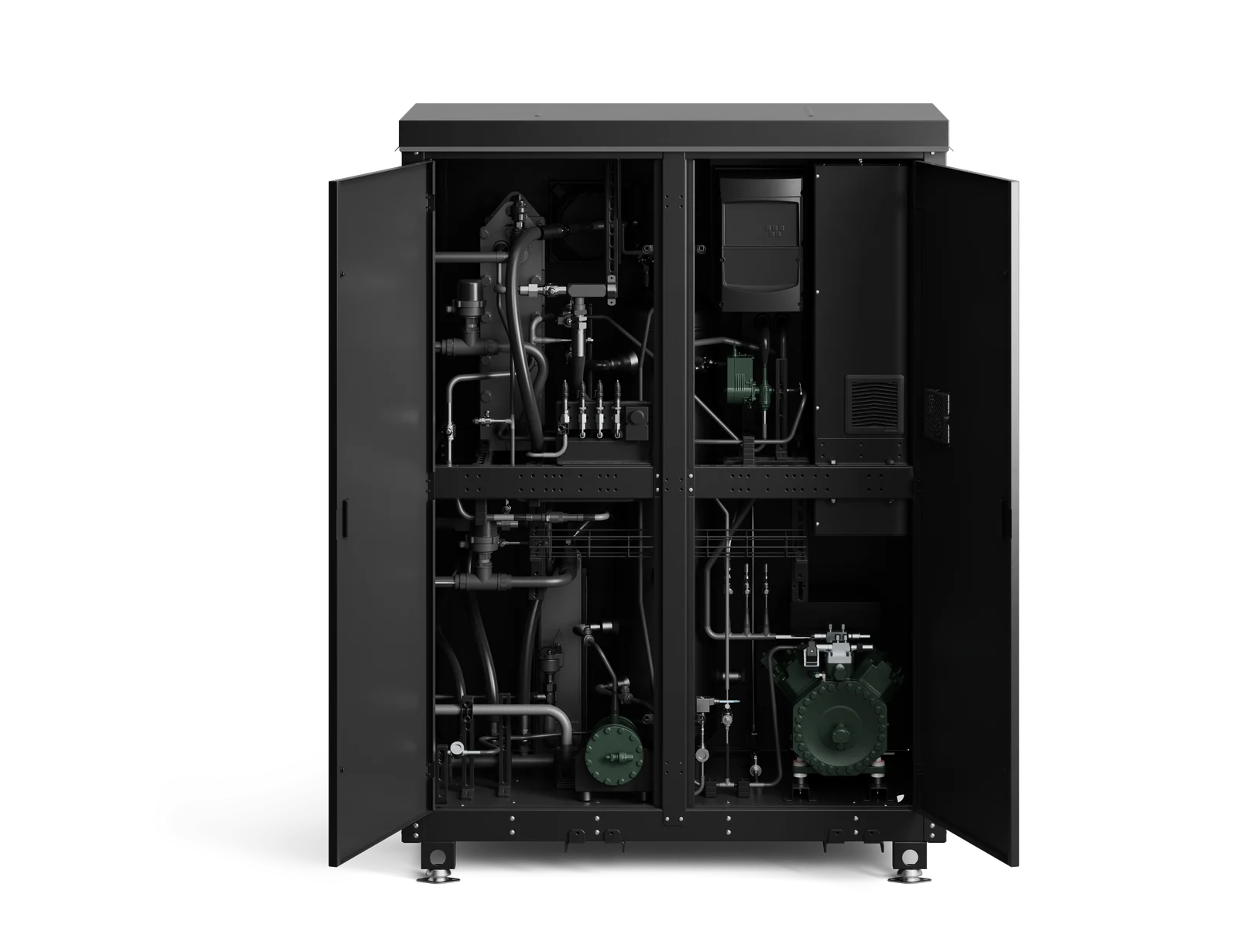

Aqua 1
This versatile unit, capable of delivering 30 kW, and can serve as a heat pump, a reversible heat pump, a chiller, or even a domestic hot water heat pump. Its unique design allows for simultaneous heating and cooling if you utilize both sides.
- Flexible heat recovery from multiple sources
- Cooling, heating, and domestic hot water simultaneously
- Preconfigured
- 10" touchscreen user-friendly interface
- Remote access and monitoring with 5G and Ethernet
- 6
- COP up to
- 90°C
- Water temp up to
- 1
- GWP
On average, this heat pump saves approximately
8t CO₂e
(metric tons CO2 equivalents each year) pr heat pump
Estimated annual CO₂e savings compared with an electric boiler, based on COP 3.0, 4,000 full-load hours per year and a grid emission factor of 0.10 kg CO₂e/kWh.
Specifications
- Refrigerant
- CO₂
- Compressor
- Bitzer 4MTE-10K
- Capacity control
- 20-100%
- Chilled water
- -7°C -> 20°C
- Hot water
- 30°C -> 90°C
- Inlet temperature up to
- 50°C
Capacities and dimensions
- Heating up to
- 30kW
- Cooling up to
- 26kW
- COP Range
- 2-6
- Dimensions (LxWxH)
- 1470x698x1929mm
- Dry Weight
- 810kg
- Voltage
- 400V
Frequently asked questions.
A few of the questions we get most before switching to Tequs.
The Aqua series covers 30 to 280 kW per unit, and units can be combined in parallel from 17 kW up to 2.5 MW. This makes it suitable for anything from a hotel or public pool to large industrial or healthcare facilities.
